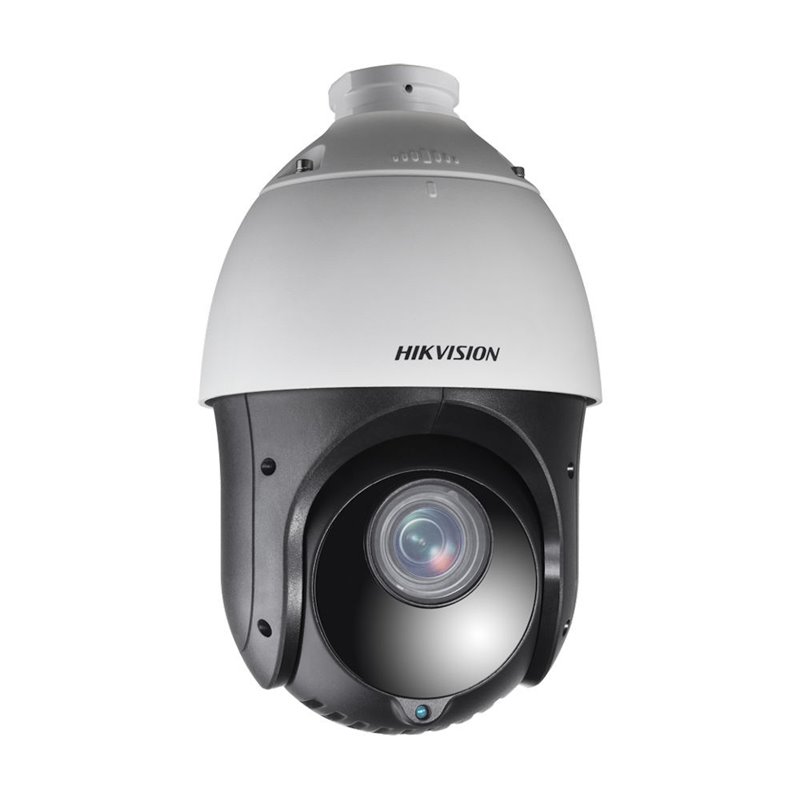

Camera supraveghere IP Speed Dome 25X 2MP Hikvision DS-2DE4225IW-DE(E)

Descarcati brosura HIKVISION DS-2DE4225IW-DE

Camera supraveghere IP Speed Dome Hikvision DS-2DE4225IW-DE(E)

Camera

Image Sensor: 1/2.8" HD progressive scan CMOS

Effective Pixels: 1920(H)x1080(V)

Signal System: PAL/NTSC

Minimum Illumination: Color: 0.005 Lux @(F1.6, AGC ON); B/W: 0.001Lux @(F1.6, AGC ON) 0 Lux with IR

White Balance: Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp

AGC: Auto/Manual

BLC: ON/OFF

HLC: Support

Smart defog: Support

WDR: 120dB

Shutter Time: 1-1/10,000s

Day& Night: ICR

Digital Zoom: 16X

Privacy Masking: 24 privacy masks programmable; optional multiple colors and mosaics

Auto Focus: Auto / Semi-automatic / Manual

Pan & Tilt

Pan Range: 360°endless

Pan Speed: Configurable, from 0.1°/s to 80°/s, Preset speed: 80°/s

Tilt Range: -15°-90° (Auto Flip )

Tilt Speed: Configurable, from 0.1°/s to 80°/s, Preset speed: 80°/s

Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset: 300

Patrol: 8 patrols, up to 32 presets per patrol

Pattern: 4 pattern scans, record time over 10 minutes for each scan

Power-off Memory: Support

Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan

PTZ Position Display: ON/OFF

Infrared

IR irradiation distance: 100m

IR irradiation angle: Adjustable by zoom

Input & Output

Audio Input: 1-ch audio input

Audio Output: 1-ch audio output

Network

Ethernet: 10Base -T, /100Base-TX, RJ45 Connector

Max.Image Resolution: 1920×1080

Main Stream:

50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ;

60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720)

Sub Stream:

50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)

Third Stream:

50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)

60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)

Video Compression:

Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264/MJPEG

Third Stream: H.265/H.264/MJPEG

ROI encoding: Support 4 areas with adjustable levels

Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM

Audio Mode: OFF/Audio input/Audio output

Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

No. of Simultaneous Users: Up to 20 users

Three-Stream: Support

Mini SD Card: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB

User/Host Level: Up to 32 users, 3 levels: Administrator, Operator and User

Security Measures: User authentication (ID and PW), host authentication (MAC address)

Hik-Connect: Support

Client GUI

Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

Web Browser: IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51

General

Menu Language: English

Power Supply: 12VDC, PoE+

Power Consumption: Max.: 18 W (Max. 7 W for IR)

Working Temperature/Humidity: -30 ℃-65℃(-22℉-149℉)(outdoor) 90% or less

Protection Level: IP66 standard (outdoor dome) / TVS 4,000V lightning protection, surge protection and voltage transient protection

Material: ADC 12, PC, PC+10%GF

Dimensions: Φ 164.5 mm × 290 mm (Φ 6.48" × 11.42")

Weight (approx.): Approx. 2 kg (4.41 lb)
