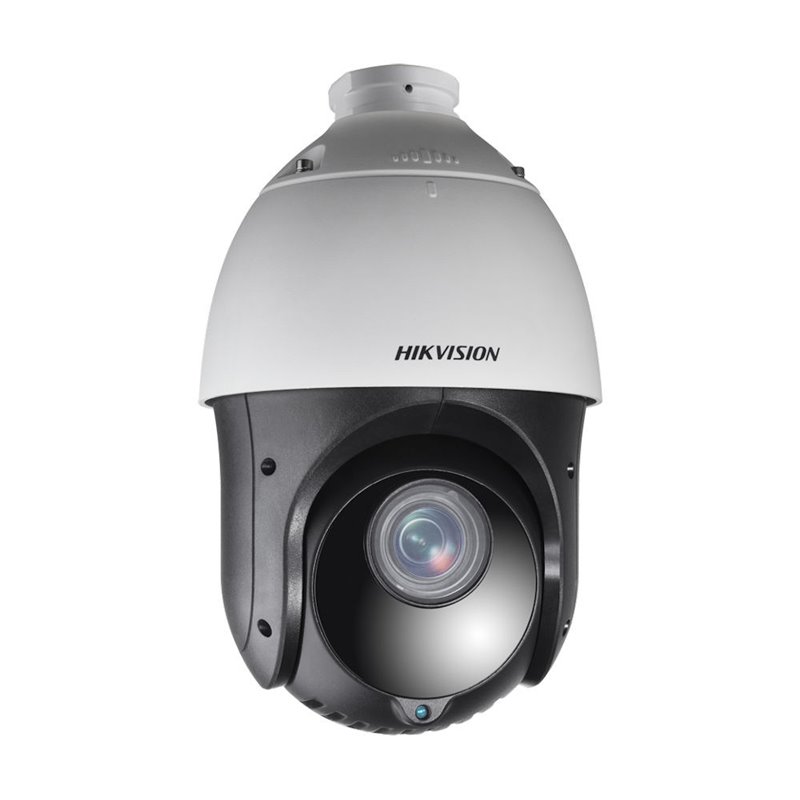

Camera Supraveghere Speed Dome Hikvision DS-2AE4225TI-D(E) Turbo HD

Descarcati brosura HIKVISION DS-2AE4225TI-D

Camera Supraveghere Speed Dome Hikvision DS-2AE4225TI-D Turbo HD

Camera

Image Sensor: 1/2.8" Progressive Scan CMOS

Effective Pixels: 1920(H)x1080(V)

Signal System: PAL/NTSC

Minimum Illumination: Color: 0.005 Lux @(F1.6, AGC ON); B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR

AGC: Auto/Manual

BLC: ON/OFF

WDR: ≥ 120 dB

Anti-shake: On / Off

Shutter Time: PAL: 1-1/10,000s / NTSC: 1-1/10,000s

Day& Night: ICR

Digital Zoom: 16x

Privacy Masking: 8 privacy masks programmable

Auto Focus: Auto / Semi-automatic / Manual

Lens

Focal Length: 4.8 mm to 120 mm, 25× Optical

Zoom Speed: Approx. 3.2 s (optical, wide to tele)

Angle of View: 57.6° to 2.5° (wide-tele)

Minimum Working Distance: 10-1500mm (Wide-Tele)

Aperture Range: F 1.6 to F 3.5

Pan & Tilt

Pan Range: 360°endless

Pan Speed: Pan manual speed: 0.1° to 80°/s; Pan preset speed: 80°/s

Tilt Range: -15°-90° (Auto Flip )

Tilt Speed:

Tilt manual speed: 0.1° to 80°/s

Tilt preset speed: 80°/s

Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset: 256

Patrol: 10 patrols, up to 32 presets per patrol

Pattern: 5 patterns, with the total recording time no less than 10 minutes

Power-off Memory: Support

Park Action: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None

PTZ Position Display: ON/OFF

Infrared

IR irradiation distance: 100m

IR irradiation angle: Adjustable by zoom

Alarm

Alarm Input: 2

Alarm Output: 1

Input & Output

Video Output: Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)

UTC function: UTC protocol (or HIKVISION-C protocol in previous DVR)

General

RS-485 Protocols: HIKVISION, Pelco-P, Pelco-D, self-adaptive

Menu Language: English

Power Supply: 12V DC

Power Consumption: Max.20 W (IR:7 W)

Working Temperature/Humidity: -30 °C-65°C(-22°F-149°F)  90% or less

Protection Level: IP66 standard (outdoor dome) / TVS 4,000V lightning protection, surge protection and voltage transient protection
