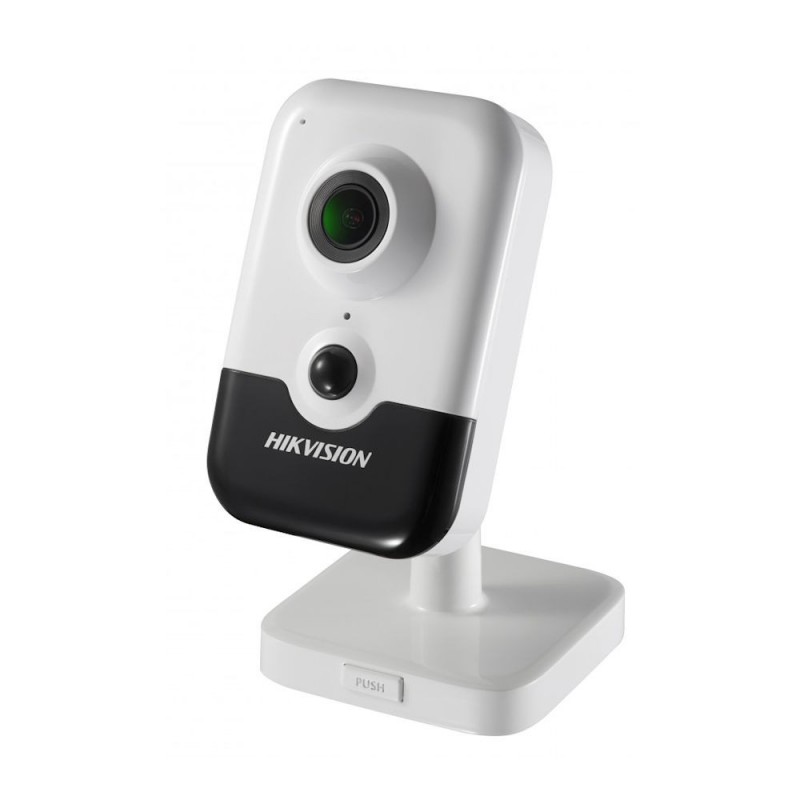

Camera supraveghere wireless 8MP Hikvision DS-2CD2483G0-IW

Camera supraveghere wireless 8MP Hikvision DS-2CD2483G0-IW

3840 × 2160@15fps

IR: 10 m

PIR: 10m

H.265, H.265+, H.264, H.264+

120dB WDR

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

PoE

BLC/3D DNR/HLC/ROI

Wi-Fi

Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR

Camera

Image Sensor: 1/2.5” Progressive Scan CMOS

Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR

Shutter time: 1/3 s to 1/100,000 s

Slow shutter: Support

Lens: 2.8 mm: horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124°

Lens Mount: M12

Adjustment Range: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Day& Night: IR Cut Filter

Wide Dynamic Range: 120 dB

Digital noise reduction: 3D DNR

Focus: Fixed

Compression Standard

Video Compression: H.265+/H.265/H.264+/H.264/MJPEG

Video bit rate: 32Kbps~16Mbps

Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM

Audio bit rate: 64Kbps (G.711)/ 16Kbps (G.722.1)/ 16Kbps (G.726)/32-160Kbps (MP2L2)

Smart feature set

Behavior Analysis: Line crossing detection, intrusion detection

Face Detection: Yes

Region of Interest: Support 1 fixed region for main stream and sub-stream separately


Max. Image Resolution: 3840 × 2160

Image Enhancement: BLC/3D DNR/HLC

Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

ROI: Support 1 fixed region for main stream and sub-stream separately

Day/Night Switch: Day/Night/Auto/Schedule

*Note: When the main stream resolution is 3840 × 2160, max frame rate is 12.5fps (50Hz)/15fps (60Hz) for all streams. When the main stream resolution is 3072 × 1728, max frame rate is 20 fps for all streams

Network

Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict,HDD full, HDD error, PIR, illegal login

Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP™,SMTP,SNMP,IGMP,QoS,IPv6

General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering

System Compatibility: ONVIF (Profile S, Profile G), ISAPI

Interface

Audio: 1 built-in mic, 1 built-in speaker, mono sound

Communication Interface: 1 RJ45 10M / 100M Ethernet interface

On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Reset Button: Yes

Audio

Environment Noise Filtering: Support

Audio Sampling Rate: 16 kHz

Wi-Fi Specification (-W)

Wireless Standards: IEEE802.11b, 802.11g, 802.11n

Frequency Range: 2.412 GHz to 2.4835 GHz

Channel Bandwidth: 20/40MHz Support

Security: WPA, WPA2

Transmission Rate: 11b: 11Mbps

11g: 54Mbps

11n: up to 150Mbps

Wireless Range: 50m (depend on environment)

Protocols: 802.11b: DQPSK, DBPSK, CCK

802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK

General

Operating Conditions: -10 °C – 40°C (14 °F – 104 °F), Humidity 95% or less (non-condensing)

Power Supply: 12 VDC ± 25%

Power Consumption: 12 VDC, 0.5A, max. 6W, Φ 5.5 mm coaxial plug power

Dimensions: 102.8 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")

Weight: Camera: Approx. 128 g (0.3 lb.)
