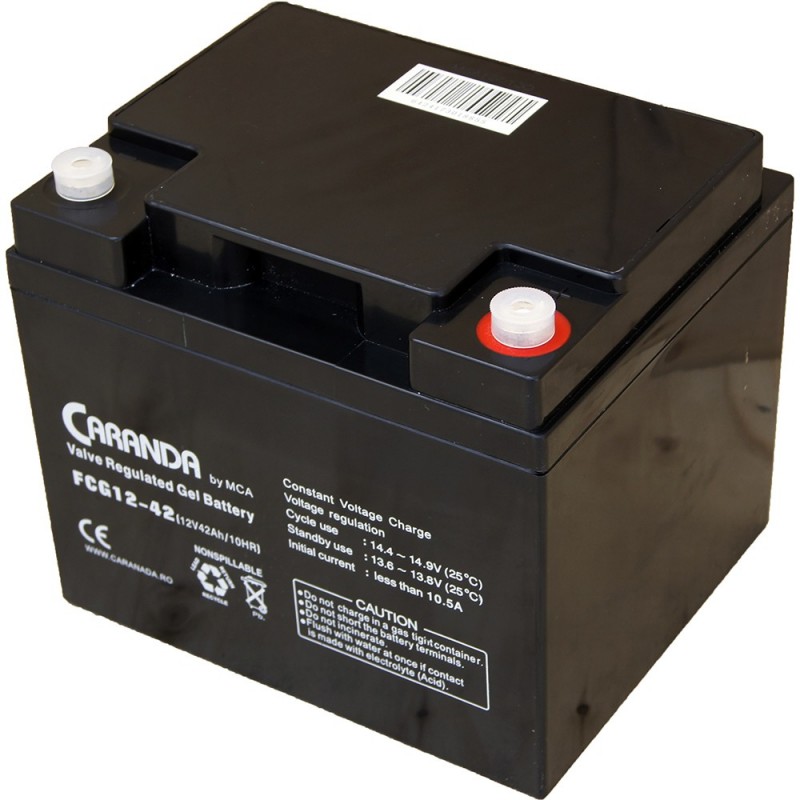

Baterie Gel VRLA Caranda 12V 42A

Baterie Gel VRLA Caranda 12V 42A

Caracteristici generale:

-        Environmentally friendly

-        Wide operating temperature range

-        Nano gel electrolyte and long floating service Life

-        Can be used at vertical or horizontal orientation

-        High Power Density

-        Low self discharge

Domenii de aplicare:

-        Telecom Control Equipments

-        UPS systems

-        Communication Equipments

-        Medical Equipments

-        Emergency Power Systems

-        Security Systems

-        Cable TV

-        Railway System

Nominal Voltage: 12V(6 cells per unit)

Design Floating Life @25℃:  12 Years

Nominal Capacity @25℃( 10 hour rate@4.20A,10.80V): 42Ah

Capacity @25℃:

20 hour rate (2.25A,10.5V) 45Ah

5 hour rate (7.4A,10.5V) 37Ah

1 hour rate (26.8A,9.6V) 26.8Ah

Internal Resistance

Full Charged Battery@25℃: ≤9.5mΩ

Ambient Temperature

Discharge: -30℃~60℃

Charge: -30℃~60℃

Storage: -30℃~60℃

Max. Discharge Current@25℃ 420A(5s)

Capacity affected by Temperature (10 hr Capacity )

40℃: 108%

25℃: 100%

0℃: 90%

-15℃: 70%

Self-Discharge@25℃ per Month 3%

Charge (Constant Voltage) @25℃

Floating Charge: Initial Charging Current Less than 10.5A / Voltage 13.6-13.8V

Cycle Charge: Initial Charging Current Less than 10.5A / Voltage 14.4-14.9V

Dimensiuni:

Length(mm) 198±1

Width(mm) 166±1

Heighth(mm) 174±1

Total Heighth(mm) 174±1

Weight(kg) 13±3%
