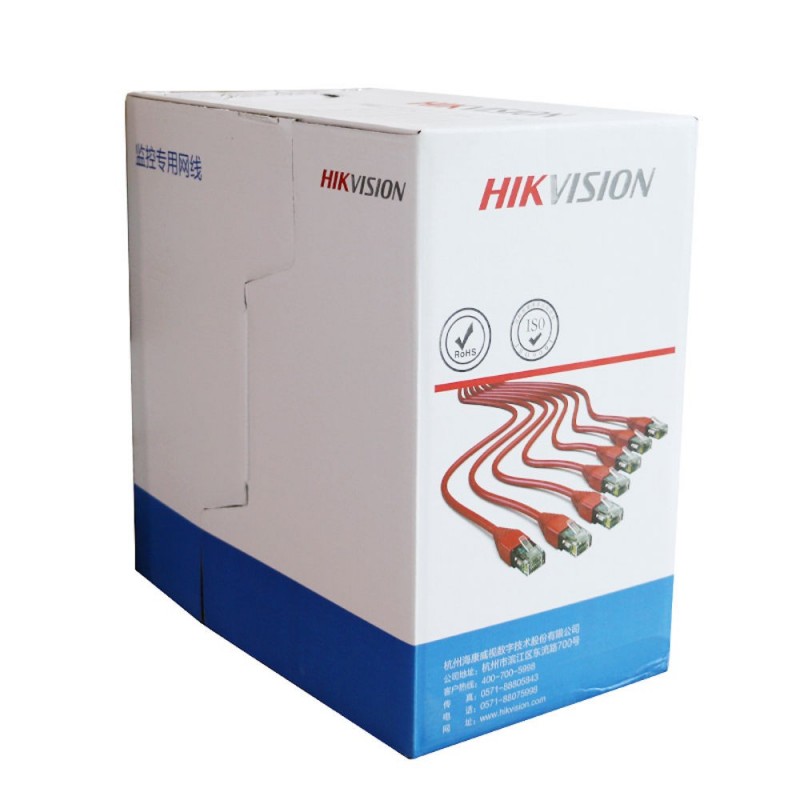

Cablu UTP CAT 5E Hikvision DS-1LN5E-E/E

Cablu UTP CAT 5E Hikvision DS-1LN5E-E/E

Cable

Category: U/UTP CAT5E-4P- PVC-CMX

Test Standard: ISO/IEC11801、TIA-568-C.2 YD/T1019

Conductor

Material: Solid-Bare Copper

Copper content: 99.97%

Nom.O.D.(mm): 0.450

up +0.005

down -0.005

Insulation

Material: HDPE

Diameter: 0.82±0.03mm

Sheath

Thickness: 0.50±0.05 mm

External O.D.: 4.7±0.4 mm

Surface: Clean,Frap,Satiation

Material: PVC(complies RoHS),CM

Color: Grey ZLC1003

Surface Printing

Letter height: 3.0±0.3mm

Color: Black

Print error & Space: ≤±0.5%，1m

General

Core Color: 1 White- Blue /Blue

2 White-Orange /Orange

3 White- Green /Green

4 White- Brown /Brown

Packing: Wooden Tray & Carton

Packing length: 305±1.5m

Rip-cord: YES

Drain wire: NO

Sheath Physical Properties: Before Aging Tensile Strength (Mpa) ≥13.5

Elongation(%) ≥150

Aging Period(℃×hrs) 100℃×24h×10d

After Aging Tensile Strength(Mpa) ≥12.5

Elongation(%) ≥125

Cold bend(-20±2℃×4h) 8×Cable O.D. No visible cracks

Electrical Characteristics: 1.0-100.0MHz Impedance(Ω) 100±15

1.0-100.0MHz Delay Shew (ns/100m) ≤45

DC ResistanceΩ/100m) max 14.8

DC Conductor Resistance Unbalance(%) max 5.0

Ambient temperature: -20℃ - 70℃
